Features:

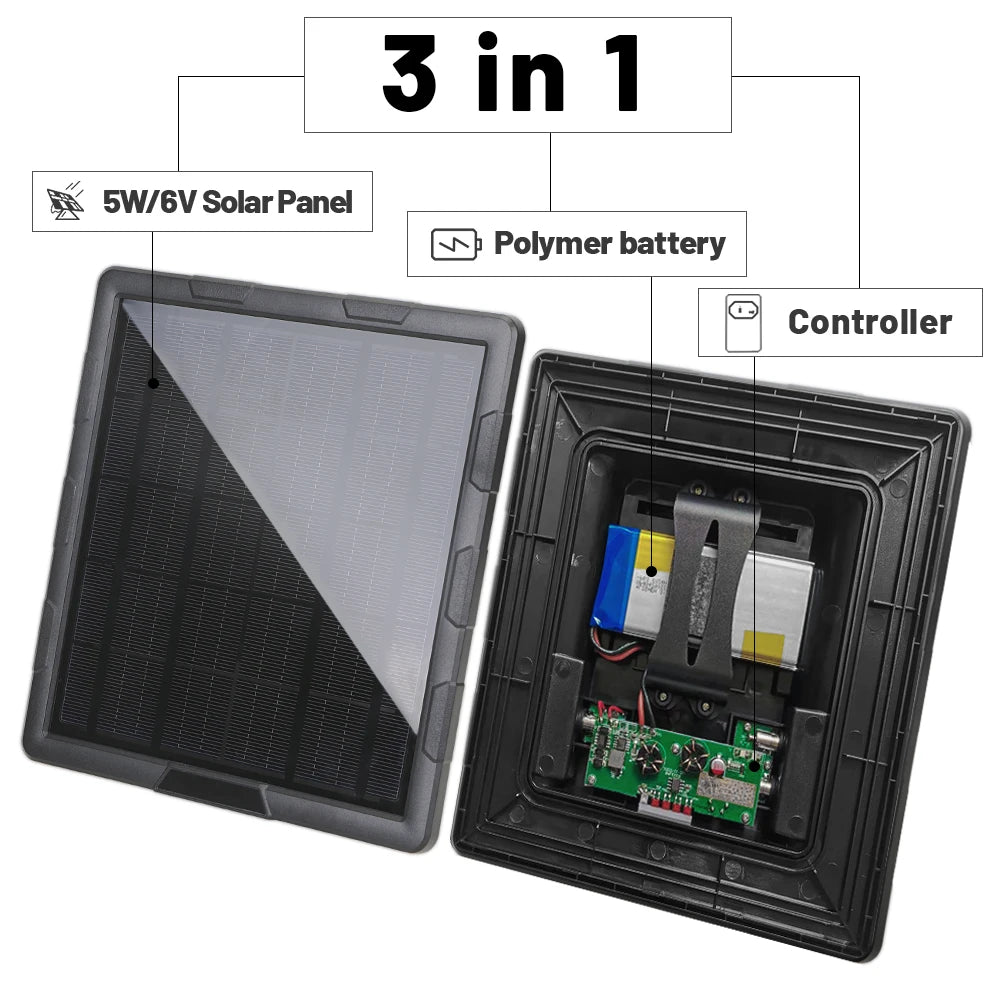

BL6A 5w Security Camera Solar Panel Built in Battery 18650 IP67 Waterproof Solar Panel for Outdoor Hunting Trail Track Camera
$71.40
Reliable shipping
Flexible returns
SPECIFICATIONS
Battery Power: 18.5W /22.2WH /27.75WH /37WH
Brand Name: KEEPTEEN
Cable length: 2.1M
Capacity: 6000/7500/10000mAh optional
Cell size: 158.75mmx158.75mm
Certification: CE/FCC/Rohs
Material: Monocrystalline silicon
Model Number: BL6A
Output Voltage: 12V/1.5A, 6V/3A
Panel Dimensions: 8*25*35cm
Panel Efficiency: 21%
Place of Origin: Guangdong, China
Remove Control: Yes or No(optional)
Type: Standard
Warranty: 3 months ~ 1 year
Working Volt: Max 6V
battery: 2/3/4pcs 18650 battery
surface: Tempering Glass
Products Description
Features:
1)5w Glass Solar Panel(monocrystalline silicon)
2)2 kinds output:6v/12v voltage
3)Built 6000mAh li-polymer battery.
4)with different kinds cable for 4017,5521,Type C,Mini Mirco USB
5)IP 67 waterproof.
Description:
BL6A Solar Power Pack was original design for Syppoint trail game camera.we updated the capacity from 6000mAh to 10000mAh,default output interface is 6v and 12v voltage.come with different cable suit for all kinds of trail camera.also support to charge the cell phone in outdoor,the Type C plug was fast charging for smart phone.you able to mount it any where there have sunshine.
BL6A able to power all kinds of electric device that input 6v or 12v.very extensive usage in outdoor as solar power kits UPS battery.we able to make any output or current to your device.
The first and biggest OEM ODM factory in China Specialized in Solar UPS System.
Details Images
Bl6A 5w Solar Power Charger |
||||
Solar Panel
|
PCE(Conversion Efficiency) |
21% |
||
WorkingPower |
5W |
|||
Working Volt |
5v |
|||
Material |
Monocrystalline silicon |
|||
Surface |
Tempered Glass |
|||
Size |
200x190mm |
|||
Battery
|
Battery Power |
18.5W/22.2WH /27.75WH /37WH |
||
Battery Voltage |
3.7V |
|||
Battery
|
Capacity |
5000/6000/7500/10000mAH Optional |
||
Circuit Combination
|
5000mAh-2 2600mAh 18650 batteries in parallel |
|||
6000mAH- 2 3000mAh polymer batteries in parallel |
||||
7500mAH.3 2600mAh 18650 batteries in parallel |
||||
10000mAH-4 2600mAh 18650 batteries in parallel |
||||
Input |
Charging time |
8 hours if Charging by DC 5V/2A |
||
20 hours if charging by sunshine (full sunshine) |
||||
Output
|
Output Voltage
|
12V/1.5A 6V/3A |
||
Circuit Protection |
YES
|
Short circuit reverse connection protection |
||
Overcharging protection |
||||

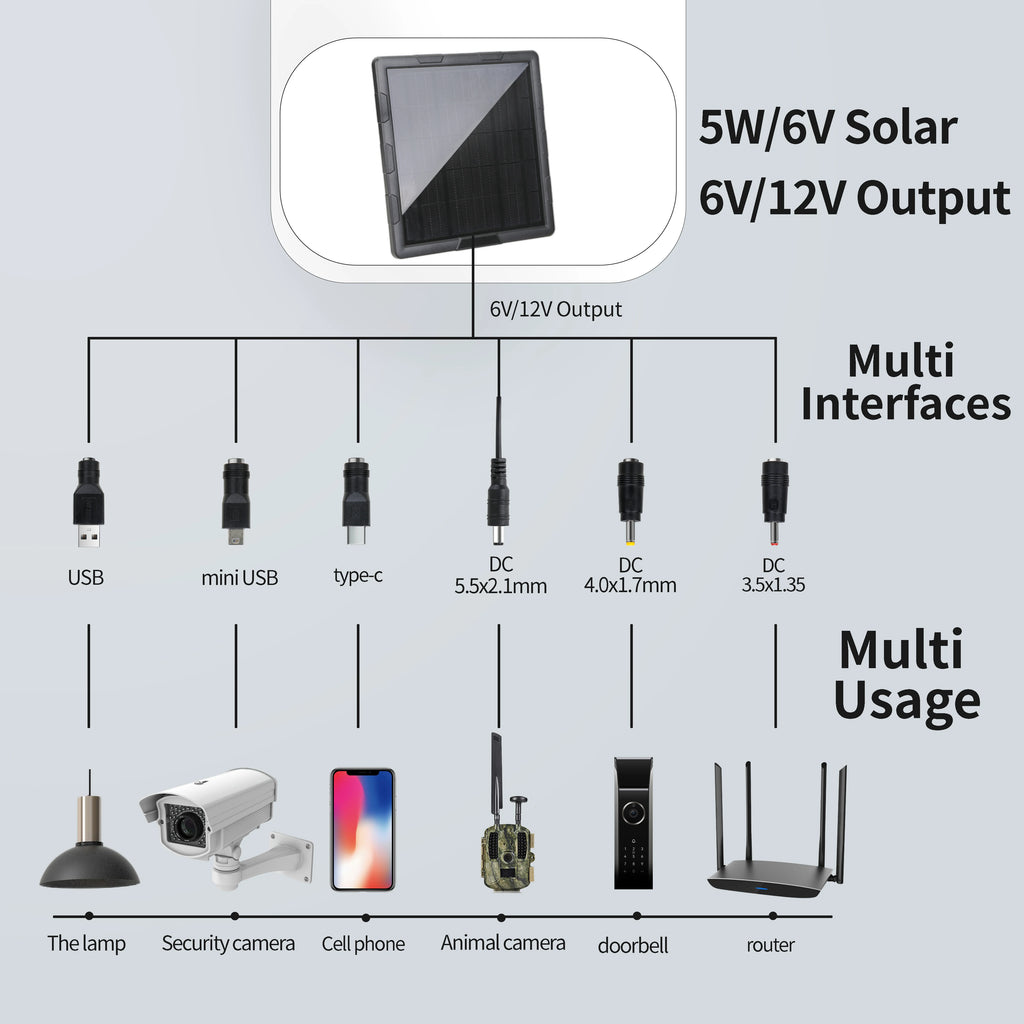

Interface |
Plug |
DC 5.5x2.1mm |
||
DC 4.0x1.7mm |
||||
DC 3.5X1.35mm |
||||
Installation |
2 kinds |
Tree Belt / Tripod Mount |
||
LED indicator |
indactes Power Level and Charging Status |
|||
WorkingTemperature |
-20C~60C(-14 F~140 F) |
|||
Waterproof |
IP66 |
|||

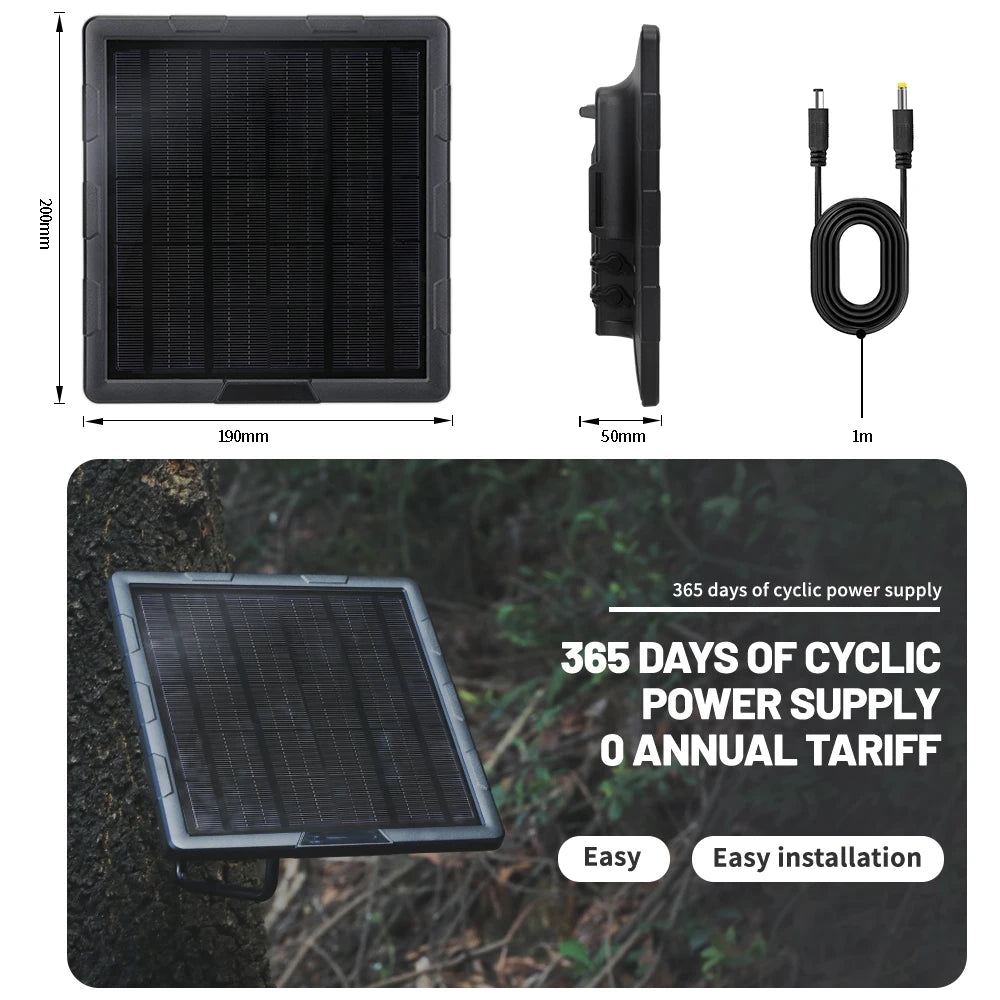

Size |
Product Size |
200*190*50mm |
||
Weight |
Product Weight |
0.55kg |
||

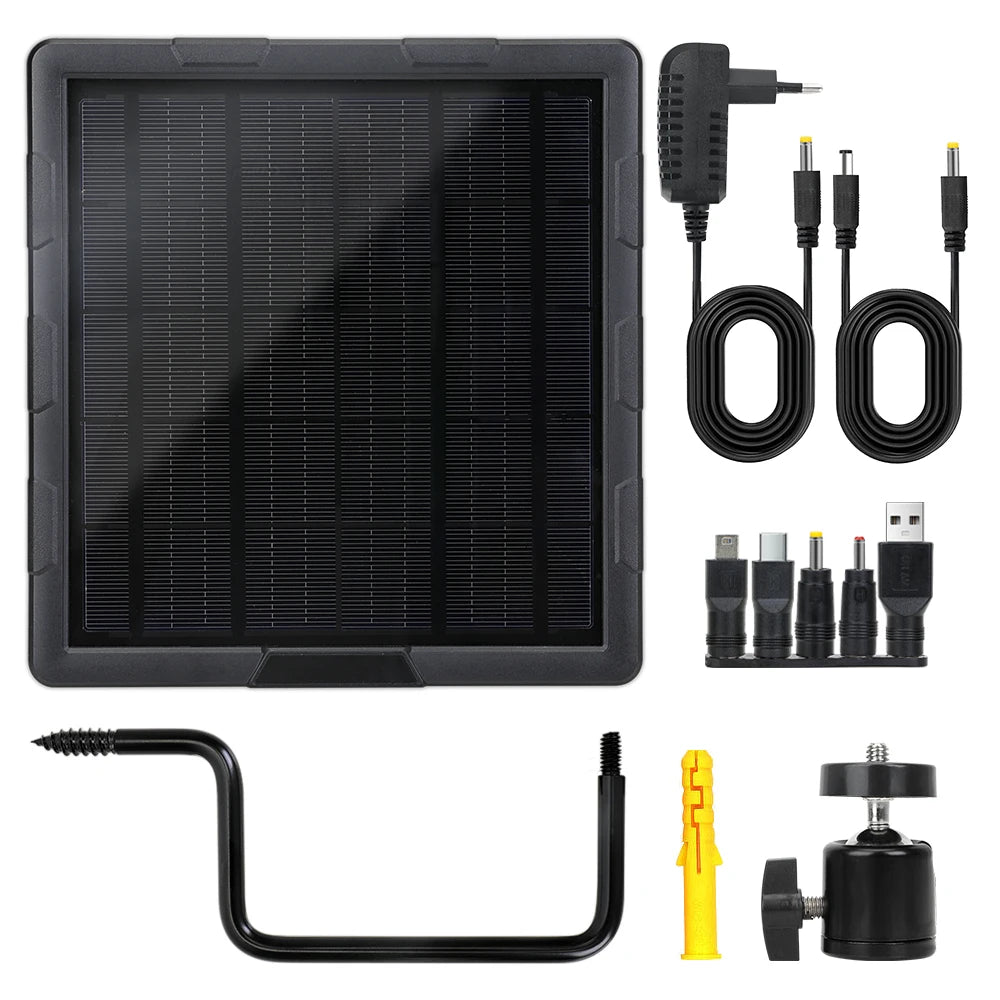

Accessories
|
1X BL6A Solar Panel *1 5.5/2A Charger*1
5.5x2.1mm output cable *1
4.0X1.7mm output cable *1
3.5X1.35mm output cable*1
Belt *1
V Bracket *1
Tree Mount *1
Manual*1
|
|||
Accessories |
||||
Certification |
CE/FCC/RoHS |
|||
Company Profile
Shenzhen Keepteen Electronic Technology Co.,Ltd.
We are a company specialized in smart solar electronicproducts, born from the parent company BALEVER, which focuses on hunting cameras.
Our factory has Solar detector,Salar power tester, 3D printer, Cold temperature tester, Automatic gluingmachine, Product aging test machinaand othersinstruments. Integratingdesign,R&D, Production and sales.
In 2018, we introduced the world's first BL8000 solar panel charger with built-in batteries.In the second half of 2021, we launched a 10-watt solar panel with a built-in 25,000mah lithium battery, which is popular in the US and EU markets.
And our 20-watt solar power pack with 54,000mah lithium battery will be listed in the 2024.
We are stillintroducing new solar panel products that can power electrical products in a variety of industries.Our team can provide customers with a varietyof customized solar solutions.
Whether you are curious about our solar panel specifications or need a solution, a free quote or a test sample for your project,we are here for you !
