(6W 1mm Thermal Pad)--Graphics Card Backplane Heatsink

GPU Backplane Radiator Graphics Card Backplate Memory Cooler Alloy Aluminum Graphics Card Backplane Heatsink PWM Video Memory VRAM Radiator Panel Dual Fan for RTX 3090 3080 3070 Series
Feature:
1. GPU Integration: The GPU backplane radiator is designed to snap into place effortlessly, engineered for GPUs like the 3090. It eliminates the hassle of complex assembly, providing a straightforward solution for vertical GPU mounting and addressing overheating memory modules.
2. Whisper-Quiet Operation: Experience tranquility with our graphics card backplate memory cooler, featuring dual 6010 anodized fans. These fans operate in near silence, even under heavy loads, due to their sophisticated black CNC-machined finish and low-noise hydraulic bearings, while PWM control finely tunes airflow.

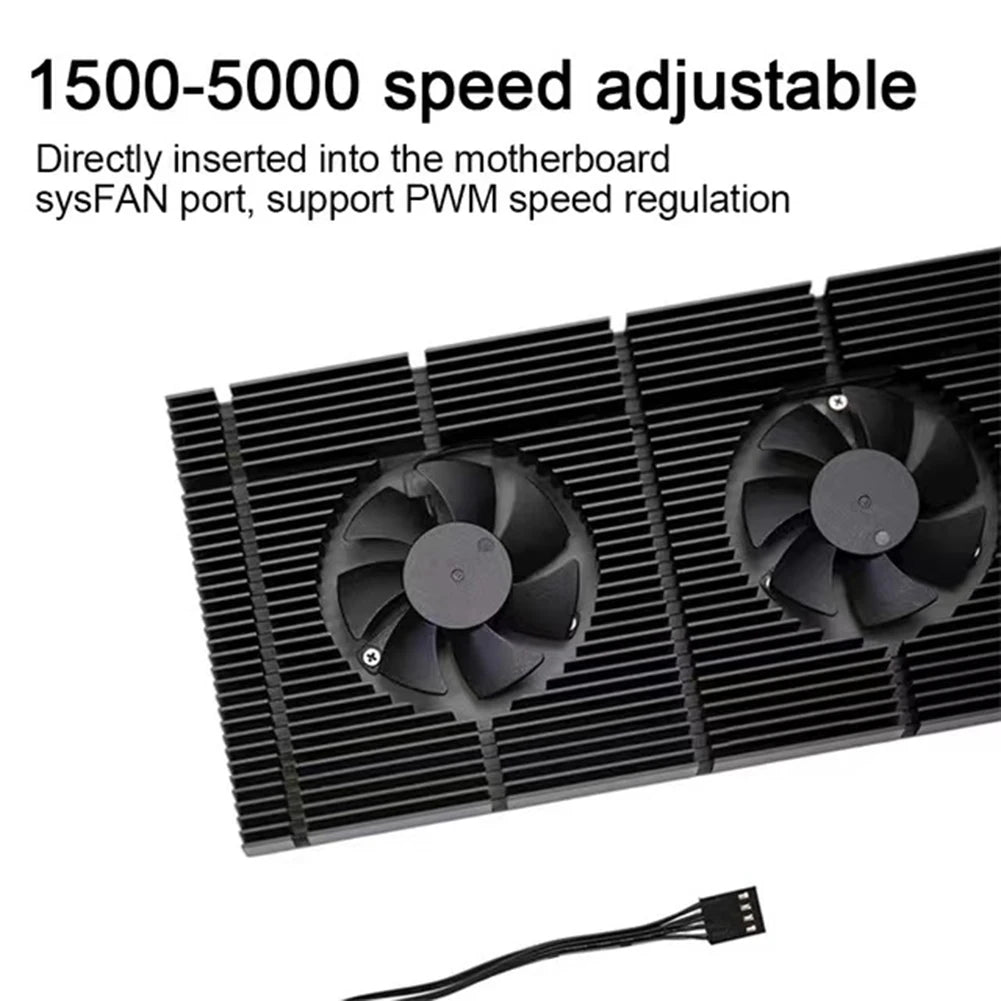

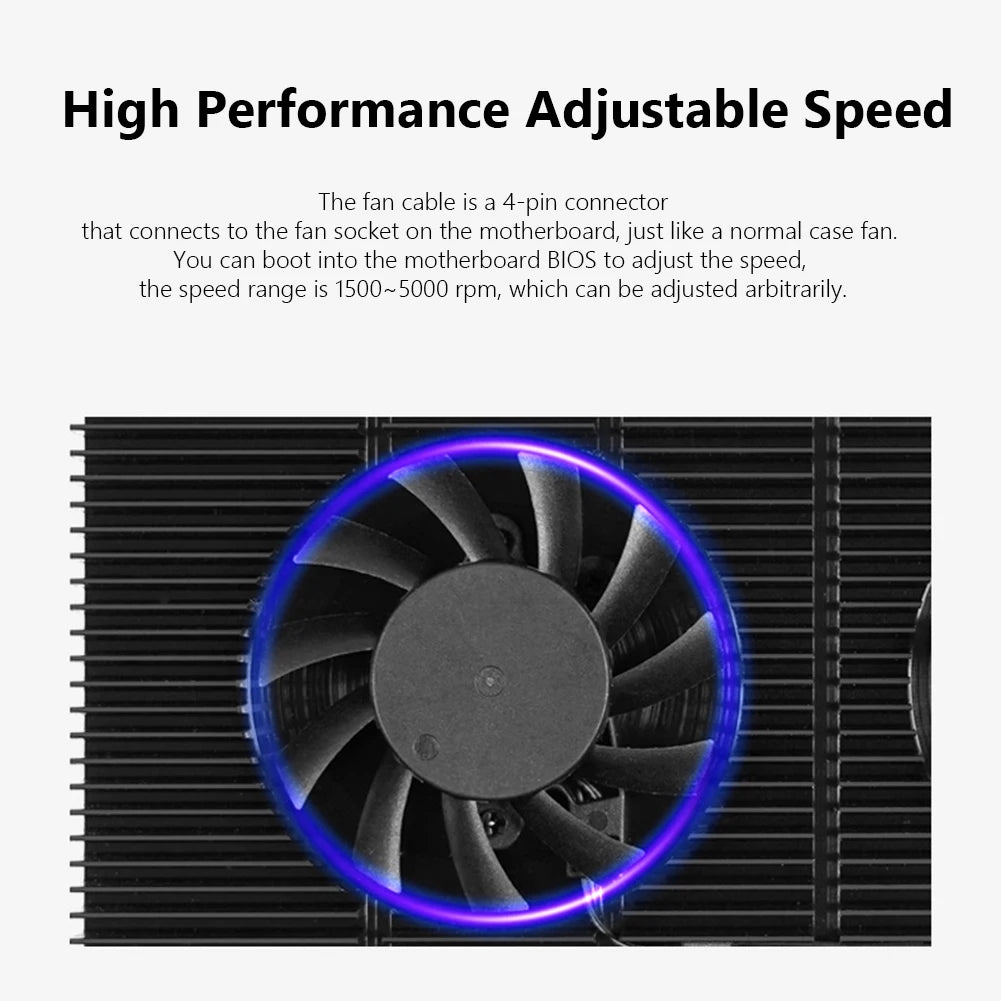

3. Customizable Cooling Dynamics: The graphics card backplane heatsink offers tailored cooling control via a 4-pin connector, enabling users to optimize fan speeds directly through the motherboard's BIOS. With RPMs ranging from 1500 to 5000, it's designed to keep up with varying intensity workloads.

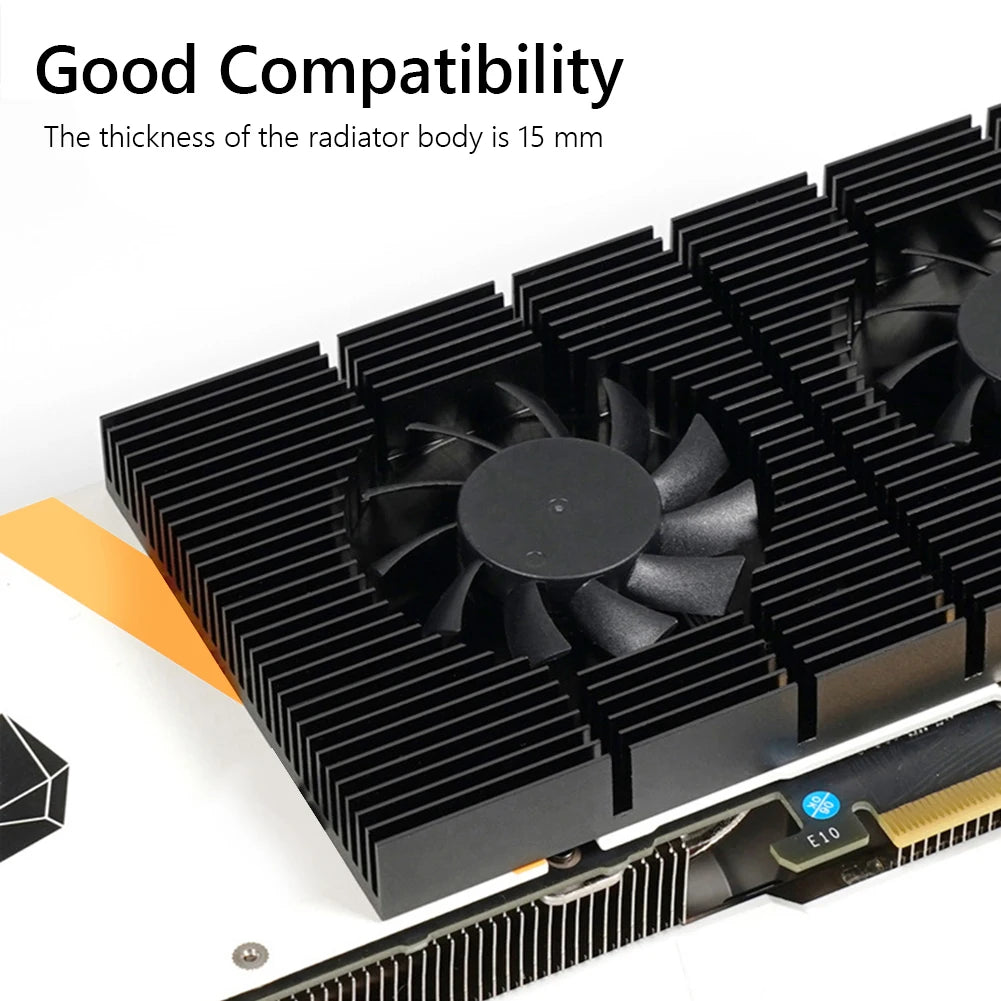

4. Expert Thermal Advice: Ensure optimal compatibility with our video memory VRAM radiator panel, which pairs perfectly with a 0.5mm or 1mm thermal pad depending on backplate flatness. This 15mm thick cooler enhances its adaptability, fitting a wide array of GPU architectures.
5. Essential Installation Reminder: To maximize effectiveness, our heatsink cooling fan panel requires a thermal pad during installation to ensure proper heat conduction from the GPU's metal backplate. This design approach results in a total height that accounts for both the 15mm heatsink and the thermal pad's thickness, ensuring comprehensive cooling coverage.

Specification:
Product Type: GPU Backplane Heatsink
Item model number: GK6
Product color: Black
Body material: Alloy aluminum (anodized CNC)

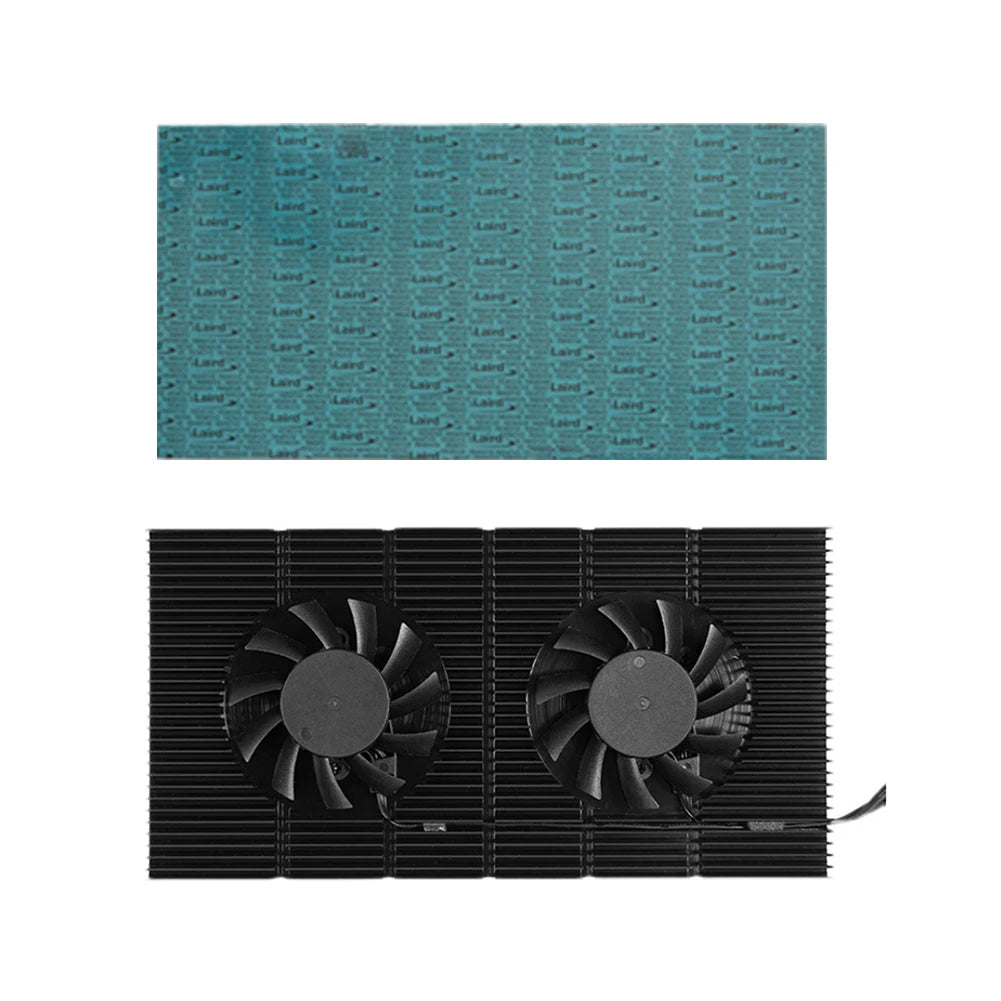

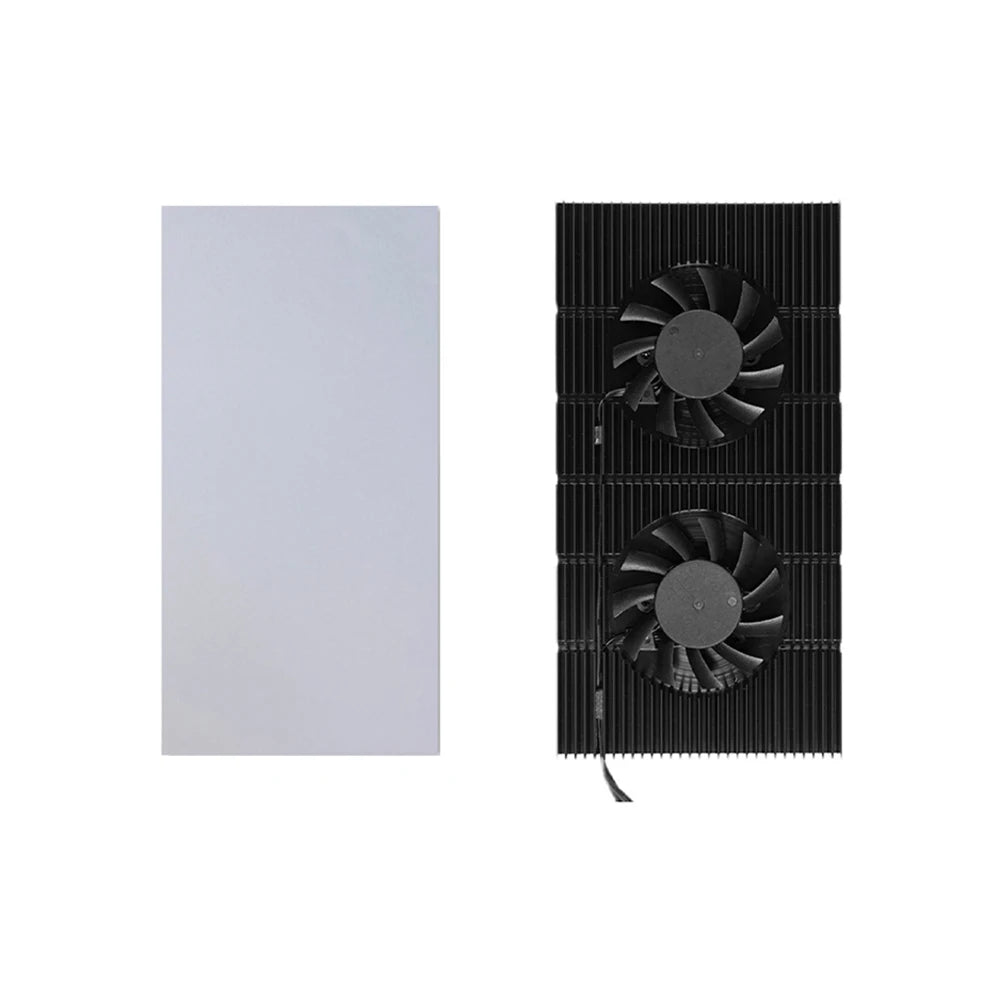

Thermal Pad: Standard Ordinary 6W 1mm, for Laird 700 0.5mm, for Laird 7001mm (Optional)
Bearing type: oil-impregnated bearing sleep bearing
Number of fans: 2
Fan model: 6010 bracket
Fan speed: 1500-4500±5% rpm
Fan interface: small 4pin, adjustable by PWM
Maximum noise: 25.5dB (single)
Fan air volume: 12.2CFM±5% (single)
Applicability: Compatible for RTX 3090 3080 3070 series graphics cards
Wire length: about 400mm±10mm/15.75±0.39 inch
Body size: about 180X90X15mm/7.09x3.54x0.59 inch

Differences between standard 6W and for Laird 700 thermal pads:
1. The thickness of the standard set (6W silicone pad) is 1mm, and the 90x180mm ordinary silicone thermal pad is soft, tough, and has a thermal conductivity of 6W/m.k. Almost oil-free, slightly higher thermal resistance, average performance, suitable for game enthusiasts non-mining use. Suitable for graphics cards (with backplane and cable ties.
2. for Laird Tflex700 set is equipped with a whole piece for Laird 700 thermal pad of 90x180mm, thickness 0.5mm/1mm, real 5W/m.K thermal conductivity. Has excellent thermal performance and high compatibility.

Installation Steps:
Step 1: Wipe the back of the graphics card with alcohol paper to remove dust.
Step 2: Peel off the thermal pad and stick it flat on the back of the heatsink.
Step 3: Glue the backplane heatsink to the memory location on the graphics card backplane.
Step 4: Fix the backplane radiator: If the graphics card is flat mounted, the thermal pad has a large area and has a certain adsorption force, and can be used directly; if the graphics card is installed vertically, it can be fixed with nylon cable ties or high temperature rubber bands.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
